Premium Connection

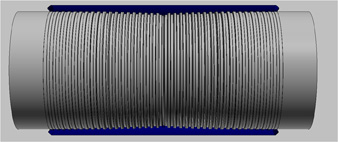

| EZGO-HT |
|
FEATURES
PIN TO PIN METAL TORQUE STOP
FLUSH ID
100% TENSION,COMPRESSION,PRESSURE
HIGH TORQUE
LOW COST
INTERCHANGEABLE WITH BTC |
 |
Connection Performance Properties
| Size |
Weight |
Drift |
Make-up |
Coupling |
J55 |
L80 |
| |
|
|
Loss |
Length |
Joint Strength |
Compression |
API Collapse |
API Internal Pressure |
Operational Torque |
Joint Strength |
Compression |
API Collapse |
API Internal Pressure |
Operational Torque |
| |
|
|
|
|
(lbs) |
(lbs) |
Pressure (psi) |
Resistance (psi) |
Max (ft-lbs) |
(lbs) |
(lbs) |
Pressure (psi) |
Resistance (psi) |
Max (ft-lbs) |
| 4 1/2 |
11.6 |
3.875 |
3.9375 |
7.875 |
184,000 |
184,000 |
4,960 |
5,350 |
6,000 |
267,000 |
267,000 |
6,350 |
7,780 |
7,000 |
| |
13.5 |
3.795 |
3.9375 |
7.875 |
211,000 |
211,000 |
6,420 |
6,200 |
7,500 |
307,000 |
307,000 |
8,540 |
9,020 |
9,500 |
| |
15.1 |
3.701 |
3.9375 |
7.875 |
239,000 |
239,000 |
7,620 |
6,730 |
8,300 |
348,000 |
348,000 |
11,080 |
9,790 |
9,800 |
| 5 |
18 |
4.151 |
4.0625 |
8.125 |
290,000 |
290,000 |
7,390 |
6,810 |
10,500 |
422,000 |
422,000 |
10,490 |
9,910 |
13,500 |
| |
20.3 |
4.059 |
4.0625 |
8.125 |
301,000 |
301,000 |
8,240 |
6,810 |
9,700 |
437,000 |
437,000 |
11,990 |
9,910 |
12,100 |
| |
21.4 |
4.001 |
4.0625 |
8.125 |
301,000 |
301,000 |
8,770 |
6,810 |
12,900 |
437,000 |
437,000 |
12,760 |
9,910 |
16,700 |
| 5 1/2 |
15.5 |
4.825 |
4.125 |
8.25 |
248,000 |
248,000 |
4,040 |
4,810 |
8,400 |
361,000 |
361,000 |
4,990 |
7,000 |
10,600 |
| |
17 |
4.767 |
4.125 |
8.25 |
273,000 |
273,000 |
4,910 |
5,320 |
9,700 |
397,000 |
397,000 |
6,290 |
7,740 |
12,300 |
| |
20 |
4.653 |
4.125 |
8.25 |
321,000 |
321,000 |
6,620 |
6,180 |
12,000 |
466,000 |
466,000 |
8,830 |
8,990 |
15,500 |
| |
23 |
4.545 |
4.125 |
8.25 |
324,000 |
324,000 |
7,670 |
6,180 |
14,000 |
472,000 |
472,000 |
11,160 |
8,990 |
18,400 |
| 7 |
23 |
6.241 |
4.5 |
9 |
366,000 |
183,000 |
3,270 |
4,360 |
17,346 |
532,000 |
266,000 |
3,830 |
6,340 |
22538 |
| |
26 |
6.151 |
4.5 |
9 |
415,000 |
208,000 |
4,330 |
4,980 |
21,358 |
604,000 |
302,000 |
5,410 |
7,240 |
28,084 |
| |
29 |
6.059 |
4.5 |
9 |
465,000 |
232,000 |
5,410 |
5,610 |
22,420 |
676,000 |
338,000 |
7,030 |
8,160 |
29,500 |
| |
32 |
5.969 |
4.5 |
9 |
512,000 |
256,000 |
6,460 |
6,230 |
27,140 |
745,000 |
373,000 |
8,600 |
9,060 |
36,108 |
| Size |
Weight |
Drift |
Make-up |
Coupling |
T95 |
P110 |
| |
|
|
Loss |
Length |
Joint Strength |
Compression |
API Collapse |
API Internal Pressure |
Operational Torque |
Joint Strength |
Compression |
API Collapse |
API Internal Pressure |
Operational Torque |
| |
|
|
|
|
(lbs) |
(lbs) |
Pressure (psi) |
Resistance (psi) |
Max (ft-lbs) |
(lbs) |
(lbs) |
Pressure (psi) |
Resistance (psi) |
Max (ft-lbs) |
| 4 1/2 |
11.6 |
3.875 |
3.9375 |
7.875 |
317,000 |
317,000 |
7,030 |
9,240 |
7,100 |
367,000 |
367,000 |
7,580 |
10,690 |
8,000 |
| |
13.5 |
3.795 |
3.9375 |
7.875 |
364,000 |
364,000 |
9,660 |
10,710 |
8,900 |
422,000 |
422,000 |
10,690 |
12,410 |
13,000 |
| |
15.1 |
3.701 |
3.9375 |
7.875 |
413,000 |
413,000 |
12,760 |
11,630 |
10,900 |
478,000 |
478,000 |
14,340 |
13,460 |
15,000 |
| 5 |
18 |
4.151 |
4.0625 |
8.125 |
501,000 |
501,000 |
12,030 |
11,770 |
15,200 |
580,000 |
580,000 |
13,470 |
13,620 |
17,000 |
| |
20.3 |
4.059 |
4.0625 |
8.125 |
519,000 |
519,000 |
14,240 |
11,770 |
17,600 |
601,000 |
601,000 |
16,490 |
13,620 |
15,100 |
| |
21.4 |
4.001 |
4.0625 |
8.125 |
519,000 |
519,000 |
15,150 |
11,770 |
19,000 |
601,000 |
601,000 |
17,550 |
13,620 |
21,300 |
| 5 1/2 |
15.5 |
4.825 |
4.125 |
8.25 |
429,000 |
429,000 |
5,380 |
8,310 |
11,900 |
497,000 |
497,000 |
5,630 |
9,630 |
13,300 |
| |
17 |
4.767 |
4.125 |
8.25 |
471,000 |
471,000 |
6,940 |
9,190 |
13,900 |
546,000 |
546,000 |
7,480 |
10,640 |
15,500 |
| |
20 |
4.653 |
4.125 |
8.25 |
554,000 |
554,000 |
10,020 |
10,680 |
17,700 |
641,000 |
641,000 |
11,100 |
12,360 |
19,800 |
| |
23 |
4.545 |
4.125 |
8.25 |
560,000 |
560,000 |
12,930 |
10,680 |
21,000 |
649,000 |
649,000 |
14,540 |
12,360 |
23,600 |
| 7 |
23 |
6.241 |
4.5 |
9 |
?????? |
316,000 |
4,140 |
7,530 |
21,700 |
732,000 |
366,000 |
4,440 |
8,720 |
28,674 |
| |
26 |
6.151 |
4.5 |
9 |
717,000 |
359,000 |
5,890 |
8,600 |
27,200 |
830,000 |
415,000 |
6,230 |
9,960 |
36,108 |
| |
29 |
6.059 |
4.5 |
9 |
803,000 |
401,000 |
7,840 |
9,690 |
28,600 |
929,000 |
465,000 |
8,530 |
11,220 |
37,996 |
| |
32 |
5.969 |
4.5 |
9 |
885,000 |
443,000 |
9,740 |
10,760 |
35,200 |
1,025,000 |
512,000 |
10,780 |
12,460 |
46,964 |
